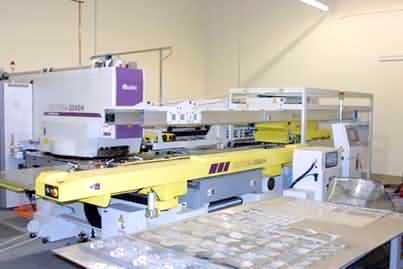

MURATA
VECTRUM 3046H
数控冲床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
MURATA
|
品牌：
MURATA
|
| Model:
VECTRUM 3046H
|
型号：
VECTRUM 3046H
|
| M.O.Y:
2001 |
产年：
2001 |
| Axis Travel:
|
主轴行程：
|
| Spindle Speed:
|
主轴转速： |
| Control:
FANUC 16I-L CNC
|
控制系统：
FANUC 16I-L CNC
|
Specification Description
| FRAME DESIGN |
J-FRAME |
| PRESS CAPACITY |
33 TON |
| TYPE OF PUNCHING FORCE |
HYDRAULIC |
| LASER CAPACITY |
2000 WATT |
| LASER MANUFACTURER |
FANUC |
| X AXIS TRAVEL |
80" |
| Y AXIS TRAVEL |
63" |
| THROAT DEPTH |
53" |
| NUMBER OF TURRET STATIONS |
54 STATIONS |
| TYPE OF CNC CONTROL |
FANUC 16i-L CNC |
| TYPE OF CLUTCH & BRAKE |
FULLY HYDRAULIC |
| MAXIMIM MATERIAL THICKNESS |
1/4" |
| STROKES PER MINUTE ON 1" MOVE |
280 HPM |
| STROKE PER MINUTE NIBBLE |
500 HPM |
| NUMBER OF AUTO INDEX STATIONS |
2 |
| TYPE OF TURRET TOOLING |
MATE MARATHON |
| AUTOMATIC SHEET REPOSITIONING |
YES |
| APPROX. WEIGHT |
35,000 LBS |
最大冲切厚度 1/4''（英寸）
控制 FANUC 16I-L CNC
冲压类型 液压
冲压力 33TON
激光力 2000 WATT |
|
|
