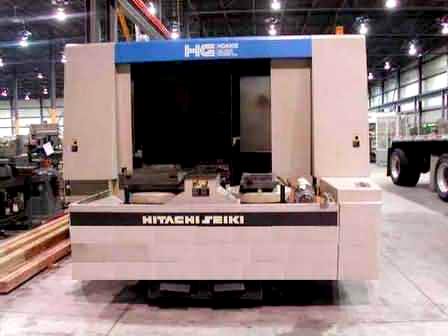

HITACHI SEIKI MODEL H-630II CNC HORIZONTAL MACHINING
CENTER, 37.4" X 32.3" X 30", WITH SEICOS SIGMA 16M CONTROL
DK-15777#
S/N HG62184
NEW 1999
SPECIFICATIONS:
TABLE
PALLET DIMENSIONS: 25" X 25"
LOAD ON PALLET (PALLET EXCLUDED): 2,640 LBS
DISTANCE FROM SPINDLE CENTER TO
TABLE SURFACE: 0 ~ 32"
DISTANCE FROM SPINDLE NOSE TO
TABLE CENTER: 7" ~ 37"
STROKE
LONGITUDINAL TRAVEL (X): 37.4"
VERTICAL TRAVEL (Y): 32.3"
CROSS TRAVEL (Z): 30"
SPINDLE HEAD
SPINDLE NOSE: NT50
SPINDLE SPEED CHANGE: FULLY AUTOMATIC & STEPLESS
SPINDLE SPEED: 20 ~ 6000 RPM
FEED RATE
LEAST INPUT INCREMENT: 0.0001"
CUTTING FEED RATE: 0.01 ~ 590.6 IPM
JOG FEED: 0 ~ 196.9 IPM
RAPID FEED RATE: 945 IPM
MOTORS
SPINDLE MOTOR (AC 50% ED): 25 HP
HYDRAULIC MOTOR: 3 HP - 4
LUBRICATION MOTOR: 0.02 HP - 2
FEED MOTOR FOR X-AXIS: FANUC MODEL a22
FEED MOTOR FOR Y-AXIS: FANUC MODEL a30
FEED MOTOR FOR Z-AXIS: FANUC MODEL a22
TABLE INDEX MOTOR: 1.4 HP
SPINDLE COOLING MOTOR: 0.5 HP - 4
ATC
NUMBER OF TOOLS: 60, CT50
MAX. TOOL DIAMETER: ?.4"
MAX. TOOL LENGTH: 16"
MAX. TOOL WEIGHT: 44 LBS
APC
METHOD OF CHANGE: PARALLEL SHUTTLE TYPE
MACHINE WEIGHT (APPROX.): 33,583 LBS
NC INDEX TABLE SPECIFICATIONS:
TABLE
NUMBER TO BE INDEXED: OPTIONAL
TABLE ANGLE ACCESS MODE: ANGLE DIRECT COMMAND
FEED
MINIMUM SET UNIT (DEG/MIN): 0.001
CUTTING FEED SPEED (DEG/MIN): 0.1 ~ 1440
RAPID FEED SPEED (MIN ): 11.1
ELECTRIC MOTOR FOR B-AXIS: FANUC a22
ELECTRICS: 220 V, 3 PH, 60 CYC
EQUIPPED WITH:
SEICOS SIGMA 16M CONTROL WITH TOOL LIFE MANAGEMENT, 200 TOOL OFFSETS
RETRACTIVE TOOL LENGTH MEASUREMENT
320 METERS OF MEMORY
RIGID TAPPING
NC ROTARY TABLE (4TH AXIS)
60 TOOL ATC
220 PSI THROUGH SPINDLE COOLANT
SCREW TYPE INTERNAL CHIP CONVEYOR (2) & EXTERNAL HINGE TYPE CONVEYOR
DUAL PALLET MACHINE |
|
