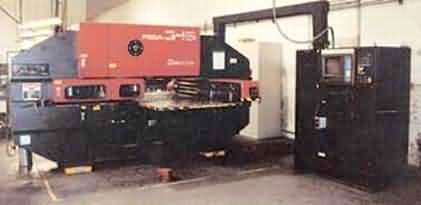

1989 Amada Pega 345Q 数控冲床
Press Capacity 冲压力 - 33 Ton
Standard Sheet Size 标准工作台 - 39.37" x 50"
Max Sheet Weight 负重 - 175 lbs .
Traverse Speed 进给速度 - 2,000 IPM
Control 控制系统 - Fanuc 04PC
Punching Accuracy 冲压精度 +/- - .004 (new)
Dimensions 尺寸 - 162.5"l-r x 109.8"f-b x 79.9"h
Weight 机重 - 22,500 lbs .
EQUIPPED WITH 配置 :
58 Station Turret w/2 Auto Index
36 - 1/2" Stations
12 - 1-1 /4"
4 - 2"
2 - 3-1/2"
2 - 4-1/2"
2 - 1-1/4" Auto Index
Hydraulic Clutch & Brake
W/1 Autorepositioning (40" x 100") |
