Machining Center Vertical |
SCHIESS-WOTAN (RAPID 2R/25)
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
TOSHIBA
|
品牌：
东芝 |
Model:
RAPID 2R/25
|
型号：
RAPID 2R/25
|
| M.O.Y:
1993 |
产年：
1993 |
| Axis Travel:
|
主轴行程：
|
| Spindle Speed: 4.0~3000 RPM
|
主轴转速：4.0~3000 RPM |
| Control:
SINUMERIK 880M
|
控制系统：
SINUMERIK 880M
|

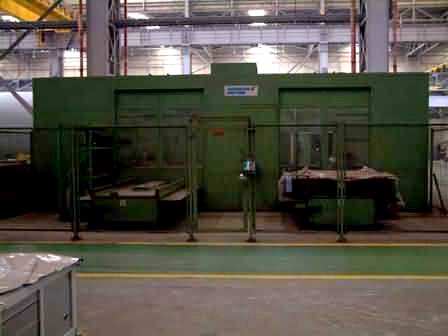

Maker: SCHIESS-WOTAN
Model: RAPID 2R/25
Maker: SCHIESS-WOTAN
Model: RAPID 2R/25
M.O.Y: 1993
Control: Sinumeric 880M
Main Motor: DC 65Kw
Table: 2500x2000 (25 Tons) 2 EA
Spindle Head:
Boring Spindle Dia (Bar dia) 140mm
Boirng Spindle Taper ISO 50
Milling Spindle Tool Mount 300mm
Spindle Speed Range 4.0~3000 RPM
Main Drive Power DC56 Kw
Table & Pallet:
Table No./ Pallet No. 1/2
Load Capa. of table/pallet 25/18 Tons
T-slot 28H7
Effective height from surface 1720mm
Fence 1500H
A.T.C
Max. Tool Dia 350mm/125mm
Max. Tool Length 550mm
Max. Tool Weight/Average 50kg/30kg
No. of Tool Magazine 60EA
A.A.C 3EA
SINUMERIK 880M |
|
|
