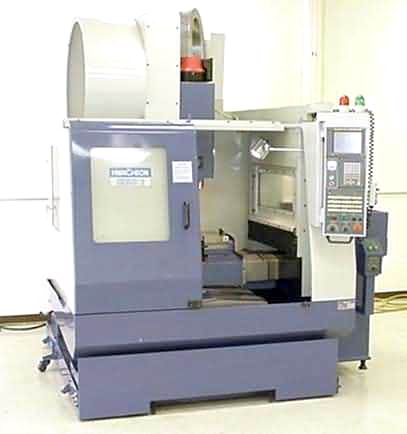

Machining Center Vertical |
HWACHEON Sirius 2 立式加工中心 |
|
|
|
|
|
|
|
参 考 价 格：400000人民币 |
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
HWACHEON
|
品牌：
HWACHEON |
| Model:
Sirius 2
|
型号：
Sirius 2
|
| M.O.Y:
1999 |
产年：
1999 |
| Spindle speeds 0 - 10,000 Rpm |
刀柄：CAT 40 |
| Spindle taper CT-40 |
工作台：
24" x 15" |
| Feed and Rapid speed 1181 IPM |
主轴转速：10000IPM |
SPECIAL FEATURES:
Coolant Through Spindle
10,000 Rpm Spindle
High Speed Machining Option
Fanuc 18M Control
Machine includes coolant tank w/ dual pumps, spindle chiller, and footpads.
CONTROL :
Fanuc 18M Control
3 Axis Simultaneous
Rigid Tapping
High Speed/High Accuracy Machining Option
RS-232 and MDI Input
All Fanuc Red-Cap AC Motors and Electronics
CONDITION REPORT:
This high performance, all box way machining center is factory equipped with high speed simultaneous 3 axis interpolation and rigid tapping. The pallet system is very fast and fully automatic, when called with an M60 code. The machine uses all Fanuc AC digital servo motors. ATC is fast and bi-directional, with shortest-path access and tool pre-call functions. Made in Korea. This is still a current model for 2003 |
|
|
