Technical data:

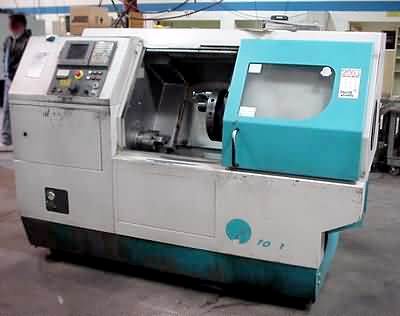

New 1999 Model # Storm 90
Maximum Swing: 16"
Maximum Diameter Turned: 9"
Maximum Length Turned: 17.7"
Spindle Nose: A2-5
Spindle Bore: 2.4"
Bar Capacity: 1-3/4" Inside the Draw Tube
Spindle Speeds: Up to 4000 RPM
Rapid Traverse Rates: 994 X & 787 Z
12-Position Vertical Turret
Fanuc 21iT CNC Control
60 Degree Slant Bed
Coolant
6-1/2" 3-Jaw Hydraulic Power Chuck, 2.050" Hole in the Chuck
15 HP Motor, Wired 3 Phase, 60 Cycle, 230 Volts
Overall Dimensions: 94" L x 48" W x 65" H
Approx. Weight: 6,100 Lb.
|
