Technical data:

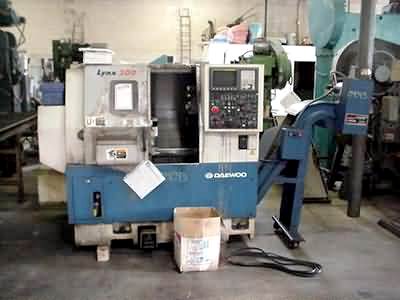

New 2000 Model # Lynx 200B
Swing Over Bed: 18.11"
Swing Over Saddle: 13.78"
Recommended Machining Diameter: 8.27"
Maximum Machining Diameter: 11.02"
Maximum Work Length: 11.81"
Draw Tube Diameter: 2.05"
X-Axis Travel: 6.30"
Z-Axis Travel: 13"
Chuck Diameter: 8.27"
Speed Range: 40 to 4000 RPM
Spindle Nose: A2-6
Spindle Bore Diameter: 2.44"
Front Bearing Diameter: 3.94"
Number of Tools: 12
OD Tool Height: 1"
Boring Bar Diameter: 1.5"
Indexing Time: .15 Seconds
Rapid Traverse: X-Axis 787 IPM, Z-Axis 944 IPM
Cutting Feed: X & Z-Axis .00003 to 19.6 IPR
|
