Technical data:

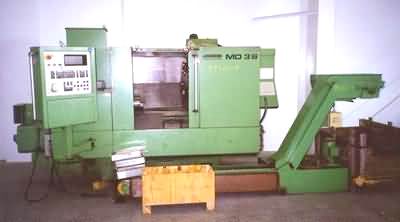

New 12-1984 Model: MD3S
Manufactured By: Gildemeister, Max Muller, Hanover, West Germany
Center Distance: 23.62"
Max.Swing Over Bed: 22.04"
Max. Swing Over Cross Slide:
Spindle Bore: 2.44"
Spindle Nose: ASA Direct Bolt On Type Size 6
Max. Driving Power: 40 / 36 KW ( approx. 50 HP)
Spindle Speeds: 100 to 4000 RPM
Spindle Speeds Continuously Programmable for Constant Cutting Speed
Feed Rates: 0.001" to 500" Per Revolution
Rapid Traverse Rate: 10 Meters Per Minute
12 Tool Tool Turret (6 positions for boring tools & 6 positions for turning tools)
Tool Shank Diameter 1.57" with Pinion Rack (Trudex Type )
|
