Technical data:

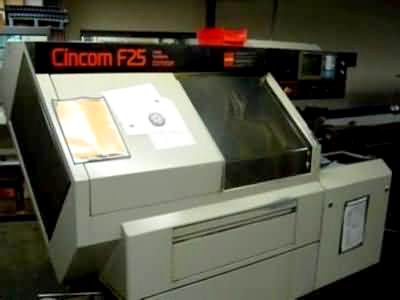

Citizn Cincom CNC Lathe New in 1988
MAXIMUM WORKING DIAMETER 1.0"
MINIMUM WORKING DIAMETER .118"
MAXIMUM LENGTH PER CHUCKING 7.87"
NUMBER OF TOOL STATIONS 10
MAIN SPINDLE SPEEDS (RPM) 180/7000
SPINDLE SPEEDS ROTARY TOOLS: LOW SPEED TURRET 200-1000,
HIGH SPEED TURRET 300-00
MAXIMUM DRILLING DIAMETER 1"
MIN INDEXING INCREMENT OF SPINDLE FULL C AXIS .001 DEG.
SPINDLE MOTOR (30 MIN RATING/CONT 7.3 HP/5 HP
SERIES 4 MACHINES (BACKWORKING): PICK OFF DEVICE 1" DIA. LENGTH
CAPACITY 17.5"L X .1" DIA.
INDEX OF PICK OFF SPINDLE 15 DEG.
APPROX WEIGHT 6,000 LBS
APPROX DIMENSIONS 78" X 72"X 78"H
|
