Technical data:

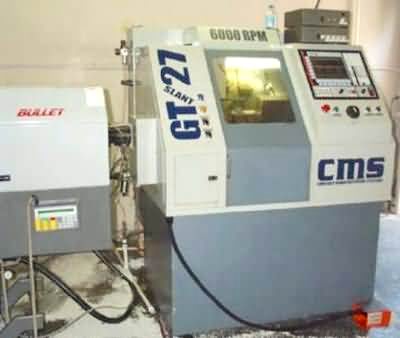

CMS CNC Lathe New in 1999
Polymer Composite Base for Extreme Rigidity
20" Tool Plate
5 hp. Yaskawa AC Vector Spindle Motor & Drive
Full "C" Axis
6000 RPM Main Spindle Speed
6000 RPM Sub Spindle Speed
5C Collet Chuck - Main Spindle
3C Collet Chuck - Sub-Spindle
5C Non-Threaded Spindle Nose
15" X-Axis Travel
7.5" Z-Axis Travel
1-1/16" Spindle Bore
1-1/16" Round Bar Capacity
800 IPM Rapid Traverse Rate To 400 IPM Feed Rate
5700 lbs Approximate Machine Weight
51" x 53" x 70" High Machine Floor Space
|
