Technical data:

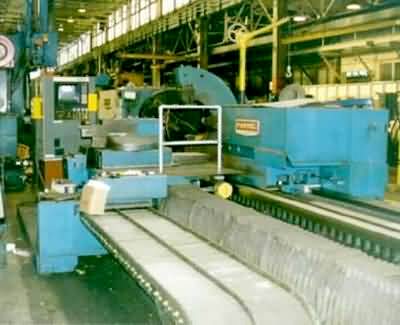

Farrel CNC Roll Lathe, New in 1971, control added in 1995
Swing over bed - 50"
Swing over cross slide - 40"
Center distance - 222"
Tool system - Programmable indexing tool post
Auxiliary tool slide travel - 5.5"
Cross slide travel - 22"
Max. work load at 10 RPM - 25 tons
Spindle speeds - 5-720 RPM
Spindle nose - modeified A1 taper
Spindle motor - 100 HP
Tailstock quill dia. - 10"
Tailstock thrust - 25,000 lbs
Approx. dimensions - 144"W x 360"L x96"H
Approx. weight - 140,000 lbs
|
