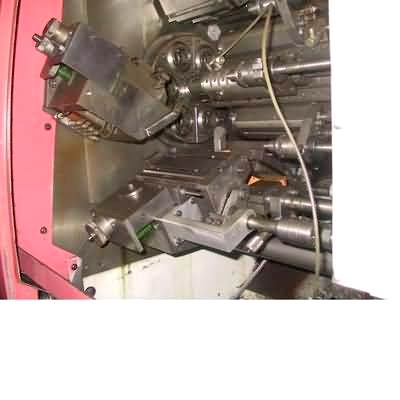

Technical data:
Bar capacity Diam.: 16 mm
Work spindle P.C.D. 165 mm
No. of cross slides 6
No. of compound slides 4
Drives for tool-spindles 6
Sensitive adjustment of frontal tool spindles 6
Max. bar feed 80 mm
Max. travel of cross slides 28 mm
Cross slides adjustment +/- 8 mm
Max. travel of tool spindles 63 mm
Tool spindle adjustment +/- 10 mm
Range of cycle times 0,7 - 40 sec.
Idle time 0,4 sec.
Programmable spindle speed range 600-9.000 rpm
Threading capacity R/H 14 x 1,5 mm
Threading capacity L/H 12 x 1,5 mm
Range of cycle times 0,7 - 40 sec.
Drive rating 11 kW
Torque of AC-feed motor 18 Nm
Floor space without stock carrier appr. 3.670 x 1.105 mm
Floor space with stock carrier appr. 5.400 x 1.105 mm
Net weight of machine appr. 3.900 kg
ACCESSORIES:
Swarf conveyor, worm type
pick-up spindle, pos. 6
Rear working slide, mechanical, pos. 6
Compound slide 4 off
automatic bar loader IEMCA PRA
|
