Technical details

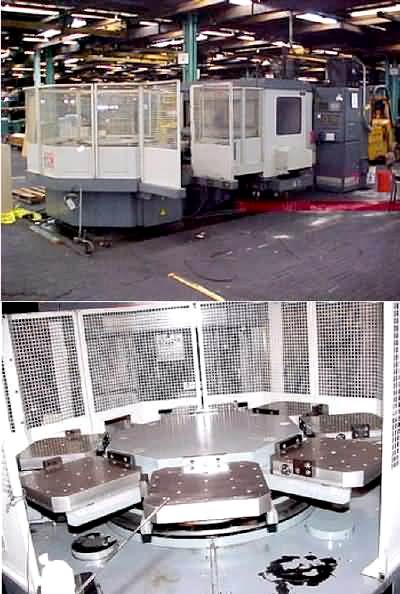

? Bridgeport Horizontal Machining Center New in 1996
? Pallet Size - 17.7" x 17.7"
? Number of Pallets - 8
? Table Indexing - 360,000 positions
? X-Axis Travel - 25.59"
? Y-Axis Travel - 19.68"
? Z-Axis Travel - 19.68"
? Spindle Drive Motor - 10/15 HP
? Spindle Nose - BT #40
? Spindle Speed - 4,000 RPM
? Tool Capacity - 80
? Rapid Traverse Rate - 787 ipm
? Cutting Feed Rate - 236 ipm
|
