Technical details

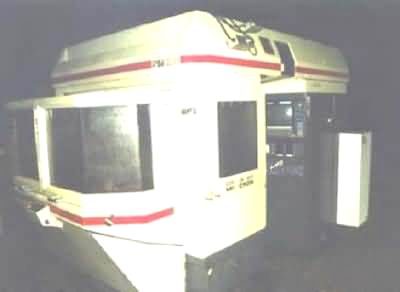

? Cincinnati CNC Horizontal Machining Center New 1993
? Machining Capacity - X Axis 22", Y Axis 18", -Z Axis 20"
? Spindle Nose to Pallet Center Min./Max 4.7"/24.8"
? Pallet Work Surface 15.75"/15.75"
? Load Capacity 880 Lbs.
? No. of Pallets 2
? Indexing Table Programmable Positions 360
? Index Speed 10 RPM
? Feed Rates XYZ 0.1 - 787 IPM
? Spindle Speeds (standard 60-8000 RPM
? Spindle Taper #40
? Automatic Tool Changer Capacity 60 Tools
? Machine Weight, Approx 16,500 Lbs.
? Approx. Machine Dimensions 84" x 157" x 106"H
Equipped with:
? Acramatic 850SX CNC Control
? Spindle 15 HP 220/440 Volts
? Thru Spindle Coolant
? Coolant Filtration System and Swarf Conveyor
? Two Pumps Coolant Tank
? Magnetic Chip Conveyor
|
