Technical details

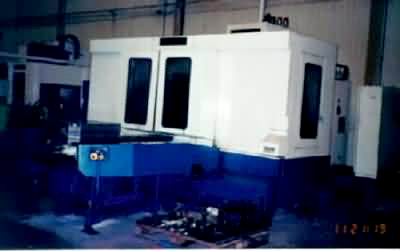

? Daewoo CNC Horizontal Machining Center New in 1992
? X-Axis Travel - 63"
? Y-Axis Travel - 35.4"
? Z-Axis Travel - 39.4"
? Pallet Size (2) - 31.5"
? Pallet Indexing - 1 Degree
? Spindle Taper - ISO #50
? Pallet Capacity - 3300 Lbs
? Tool Storage Capacity - 45 Tools
? Spindle Speed Range - 20-4500 RPM
? Main Drive Motor (Cont./30 min) 20/15 HP
? Approximate Machine Weight - 34175 Lbs
Equipped with:
? Tosnuc 600M CNC Control
? 45 Station Automatic Tool Changer
? 2 Pallet Automatic Pallet Shuttle
? Chip Conveyor
? Miscellaneous Tool Holders
? Full Guarding
|
