Technical details

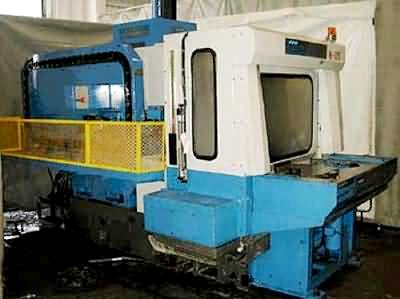

? Kia CNC Horizontal Machining Center New 1994
? Table Size(2) - 15.7" x 15.7"
? X-Axis - 21.65"
? Y-Axis - 19"
? Z-Axis - 19"
? Min. Indexing - 1 degree Increments
? Spindle Speeds(Inf. Var.) - 30-1060, 1060-6000 RPM, 2 ranges
? Rapid Rates - 630 ipm
? Feed Rates - 0.01-200 ipm
? Side Mount Tool Change Capacity - 50
? Tool Call System - Random/Bidirectional
? Max. Tool Dia. - 6.3"
? Max. Tool Length - 12"
? Max. Tool Weight - 22 Lbs
? Spindle Taper - CAT #40
? Spindle Motor - 10 HP
? Axis Motor - 1.5 HP
? Table Index - 0.75 HP
? Hydraulic Motor - 3 HP
? Approximate Machine Weight - 14300 Lbs
? Approximate Machine Dimensions - 146"LR x 100"FB x 106"H
Equipped with:
? Fanuc 15M CNC Control
? 48 Work Off Sets
? 200 Tool Offsets
? Helical Interpolation
? Extended Memory 64M
? 50 Tool Capacity ATC
|
