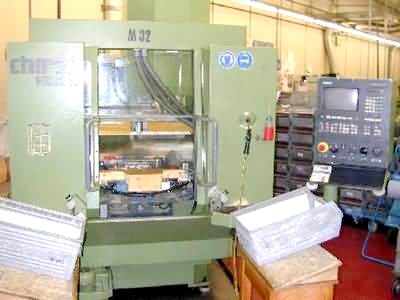

Machining Center Vertical |
CHIRON
FZ 12 W
立式加工中心 |
|
|
|
|
|
|
|
|
请点击小图看大图 |
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
CHIRON
|
品牌：
CHIRON
|
| Model:
FZ 12 W
|
型号：
FZ 12 W
|
| M.O.Y:
1990 |
产年：
1990 |
| Table:
950 mm×660 mm
|
工作台：
950 mm×660 mm
|
| |
|
| 工作台行程(横向×纵向×垂直)
|
工作台行程(横向×纵向×垂直)
|
| Siemens Sinumerik 810M |
Siemens Sinumerik 810M |
|
Technical details
x-travel 550 mm
y-travel 300 mm
z-travel 280 mm
bore capacity in St 60 - full boring 20 mm
threading cutting capacity: M 16
85 cm3 / min
tool taper SK 30
spindle drive 5,5 kW
turning speed range - stepless 20 - 7100 U/min
max. torque on the spindle 35 Nm
spindle bearing diameter 50 mm
rapid traverse Z-axis 20 m/min
rapid traverse X-axis 20 m/min
rapid motion - y-axis 20 m/min
workpiece weight max. 100 kg je Seite
table: 950 x 660 mm
distance spindle /table 190 - 470 mm
distance spindle - column 315 mm
Control Siemens Sinumerik 810M
no. of tools in the magazine 12 Stück
total power requirement kW
weight of the machine ca. 3 t
dimensions of the machine ca. 2,8 x 1,8 x 2,6 m
|
