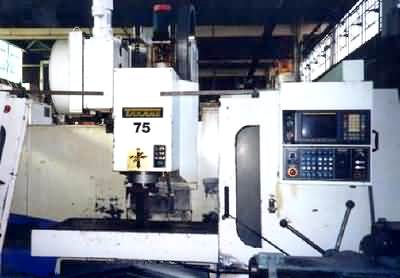

Machining Center Vertical |
Takang
立式加工中心 |
|
|
|
|
|
|
|
|
请点击小图看大图 |
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
Takang
|
品牌：
Takang
|
| Model:
VMC1020
|
型号：
VMC1020
|
| M.O.Y:
|
产年：
|
| Table:
560mm×1300mm
|
工作台：
560mm×1300mm
|
| 主轴转速
40 - 4,000 |
主轴转速 40 - 4,000 |
| 工作台行程(横向×纵向×垂直)
613mm×1020mm×700mm
|
工作台行程(横向×纵向×垂直)
613mm×1020mm×700mm
|
| 刀具数量
24 |
刀具数量
24 |
|
Max. X-Axis Travel .................................. 40.1574" 1020
Max. Y-Axis Travel .................................. 24.1574" 613
Max. Z-Axis Travel ........................... 27.559" 700
Distance From Spindle Center To Column ....... 26.968"
Table Size ....................... 51.181 x 22.047"
Allowable Weight On Table ........ 2204 Lbs.
T Slot ..................... 5 x 18 x 100MM
Spindle Speed .............. 40 - 4,000 RPM
Spindle Motor ............. 15/20 HP
Max. Tool Diameter .........4.9213"
Max. Tool Length ...........13.7795"
Max. Tool Weight .......... 33 Lbs.
Rapid Traverse X .......... 15
Rapid Traverse Y .......... 15
Rapid Traverse Z .......... 12
Maximum Tool Capacity ......24 Tool
Dimensions .................. 3520 x 3600 x 3200MM
Weight ..................... 27,550 Lbs.
|
