Machining |
AMC Denmark

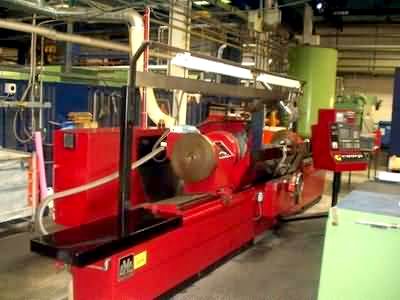

AMC R-3000-CNC
数控磨床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
AMC Denmark
|
品牌：
AMC Denmark
|
Model:
AMC R-3000-CNC
|
型号：
AMC R-3000-CNC
|
| M.O.Y: 1986 |
产年： 1986 |
| Axis Travel: |
主轴行程：
|
| Spindle Speed:
|
主轴转速： |
| Control:
|
控制系统：
|
| Max. distance between chucks mm / inch 3.050 / 120Max. distance between centres mm / inch 3.000 / 118 Max. swing over table mm / inch 680 / 27 Max. weight of workpiece between chucks kg / lb 2.500 / 5.510 Max. grinding length mm / inch 3.000 / 118 Max. grinding diameter with new grinding wheel mm / inch 610 / 24 Table speeds mm/min / inch/min 1-5.000 / 0.04-197Headstock spindle speeds,variable rpm 2-500 Headstock motor kW / hp 7 / 9.5Grinding wheel motor kW / hp 17 / 23 Max. grinding wheel diameter mm / inch 813 / 32 Max. grinding wheel width mm / inch 100 / 4 Diameter of grindingwheel bore for hub mm / inch 305 / 12 Max. tailstock quill mm / inch 70 / 2.8 Working space(working machine) mm / inch 9.800 x 2.900 / 386 x 114 Net weight of basic machine kg / lb 6300 / 13889 Gross weight of basic machine kg / lb 7.400 / 16.314 |
|
|
