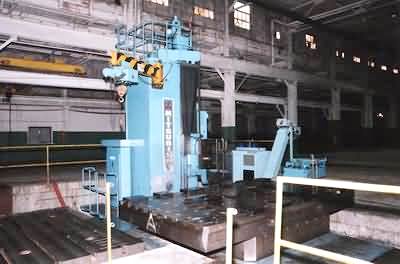

Machining Center Vertical |
MITSUBISHI
MAFS-150
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
MITSUBISHI
|
品牌：
MITSUBISHI |
Model:
MAFS-150
|
型号：
MAFS-150
|
| M.O.Y:
1980 |
产年：
1980 |
| Axis Travel:
900mm |
主轴行程：
900mm
|
| Spindle Speed:
4-800 RPM
|
主轴转速：
4-800 RPM
|
| Control:
|
控制系统：
|
SPINDLE DIAMETER: 5.9" (150 MM)
MILLING SPINDLE DIAMETER: 8.26" (210) MM)
MILLING SPINDLE END DIAMETER: 9.25" (235 MM)
TAPER IN SPINDLE: #50 ANSI
VERTICAL TRAVEL OF HEADSTOCK (Y): 98.42" (2500 MM)
HORIZONTAL COLUMN TRAVEL (X): 248" (6300 MM)
SPINDLE TRAVEL (Z): 35.43" (900 MM
RAPID TRVERSE (X, Y, & Z): 189 IPM (5000 MM/MIN)
SPINDLE SPEEDS (INF. VARIABLE): 4-800 RPM
3-RANGES
50/60 HP (37/45 KW) SPINDLE DRIVE MOTOR 230/460
FLOOR SPACE: 515.75" L X 128" F-B X 267.7" HIGH
WEIGHT: 99,000 LBS. |
|
|
