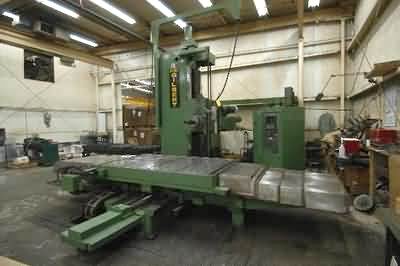

Machining Center Vertical |
CINCINNATI GILBERT
SERIES CD
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
CINCINNATI GILBERT
|
品牌：
CINCINNATI GILBERT
|
Model:
SERIES CD
|
型号：
SERIES CD
|
| M.O.Y:
1988 |
产年：
1988 |
| Axis Travel: 72*60 |
主轴行程：
72*60 |
| Spindle Speed:
7 TO 1510 RPM
|
主轴转速：
7 TO 1510 RPM
|
| Control:
|
控制系统：
|
SPINDLE DIAMETER: 4"
SPINDLE TRAVEL (Z): 29"
SPINDLE TAPER: NO. 50
SPINDLE SPEEDS: 7 TO 1510 RPM
TABLE SIZE: 48" X 84" T-SLOTTED
TABLE CROSS TRAVEL (X): 72"
SADDLE TRAVEL (W): 31"
SADDLE LENGTH: 120"
LENGTH OF BEDWAYS: 84"
HEADSTOCK VERTICAL TRAVEL (Y): 60"
SPINDLE FEEDS: .01 TO 200 IPM
RAPID TRAVERSE RATE: 200 IPM
MOTOR: 20 HP |
|
|
