Machining Center Vertical |
JUARISTI
TS 150
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
JUARISTI
|
品牌：
JUARISTI
|
Model:
TS 150
|
型号：
TS 150
|
| M.O.Y:
1990 |
产年：
1990 |
| Axis Travel:
|
主轴行程：
|
| Spindle Speed:
0 - 1600
|
主轴转速：
0 - 1600
|
| Control:
Heidenhain TNC 355
|
控制系统：
Heidenhain TNC 355
|
Technical data:

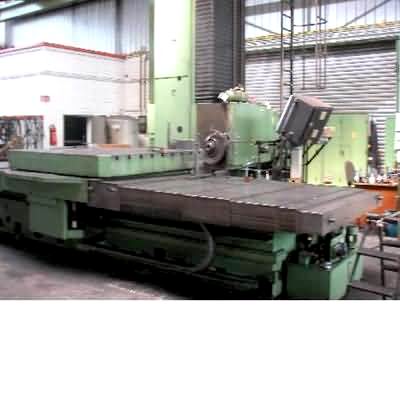

1 used CNC-boring mill - table type
brand JUARISTI
model TS 150
built in 1990
condition good - visit under power in working condition is possible
CNC-control Heidenhain TNC 355
travels X-Y-Z-W 4000 x 3000 x 1500 x 1000 mm
table surface clamping 2000 x 2000 mm
max. weight of workpiece 30 ton
table axis B-axis 360000 x 0.001°
spindle diameter 150 mm
spindle speed range 0 - 1600 rpm
spindle motor power 52 kW
tool taper ISO 50
cooling device
chip conveyor |
|
|
