Machining Center Vertical |

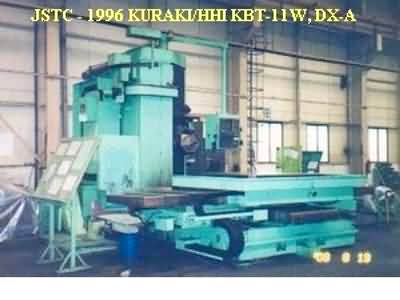

Kuraki
KBT-11W
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
Kuraki
|
品牌：
Kuraki
|
Model:
KBT-11W
|
型号：
KBT-11W
|
| M.O.Y:
1996 |
产年：
1996 |
| Axis Travel:
|
主轴行程：
|
| Spindle Speed:
5~2500
rpm
|
主轴转速：
5~2500
rpm
|
| Control:
Fanuc 15M
|
控制系统：
Fanuc 15M
|
Technical data:
Control : KURAKI / Fanuc 15M
Boring Spindle Diameter : 4.33” (110 mm)
Axis Travel(X/Y/Z/W) : 79 x 59 x 53 x 25.6” (2000 x 1500 x 1350 x 650 mm)
Distance from Table Top to spindle Center : 0 ~ 59” (0 ~ 1500 mm)
Distance from Table Center to Spindle nose : 25.6 ~ 79” (650~2000 mm)
Table Work Space 55 x 63” (1400 x 1600 mm)
Table Max Loading Capacity 19400 lbs. (8800 kg)
Table Auto, Indexing 0.001 degrees
Spindle Speed 5~2500/ min-1
Table (Pallet) Revolution Speed 1.3/ min-1
Spindle Taper Hole 7/24 Taper No.50 (ISO)
Rapid Traverse (XYZ) : 472 IPM (12000 mm/min)
Rapid Traverse (W) : 236 IPM (6000 mm/min)
Tool shank Type MAS BT50
ATC : 40 ea
Spindle Motor AC 15 /11
Machine Height 157” (4000 mm)
Floor Space 333 x 232” (8470 x 5900 mm)
Machine Weight 81500 lbs. (37000 kg |
|
|
