Machining Center Vertical |

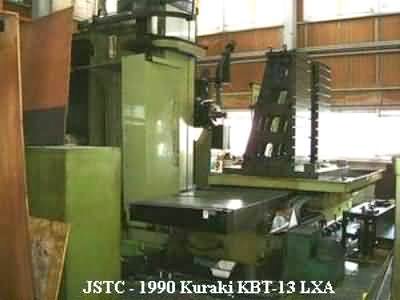

Kuraki
KBT-13 LXA
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
Kuraki
|
品牌：
Kuraki
|
Model:
KBT-13 LXA
|
型号：
KBT-13 LXA |
| M.O.Y:
1990 |
产年：
1990 |
| Axis Travel: 130*200
|
主轴行程：
130*200
|
| Spindle Speed:
5 ~ 2000 rpm
|
主轴转速：
5 ~ 2000 rpm
|
| Control:
Fanuc 15M
|
控制系统：
Fanuc 15M
|
Technical data:
System : FANUC 15M
Currently working in Korea and inspection available under power.
Boring Spindle Dia. : 5.12" (130 mm) (Main spindle dia.)
Milling Spindle Dia. : 9.84" (250 mm) (Milling dia.)
Table Work Space : 63.0 x 70.7" (1600 x 1800 mm)
Travel (XYZW) : 118 / 79 / 51.2 / 27.5" (3000 / 2000 / 1300 / 700 mm)
Distance from Table Top to Spindle Center : 0 ~ 79" (0 ~ 2000 mm)
Distance from Table center to Spundle Nose : 27.5 ~ 79" (700 ~ 2000 mm)
Table Max. Loading Capacity : 2200 lbs. (1000 kg)
Spindle Speed : 5 ~ 2000 rpm (3 steps)
Spindle Taper Hole : 7/24 Taper No. 50 (ISO)
Tool Shank Type : MAS BT50 (ISO)
ATC : 40 ea
Spindle Motor : AC 29.5 / 24.8 Hp (AC 22 / 18.5 kW) |
|
|
