Machining Center Vertical |
WOTAN
RAPID 1
数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
WOTAN
|
品牌：
WOTAN
|
Model:
RAPID 1
|
型号：
RAPID 1
|
| M.O.Y:
1999 |
产年：
1999 |
| Axis Travel: 125*100 |
主轴行程： 125*100
|
| Spindle Speed:
2.000 rpm
|
主轴转速：
2.000 rpm
|
| Control:
Siemens 810
|
控制系统：
Siemens 810
|
Technical data:

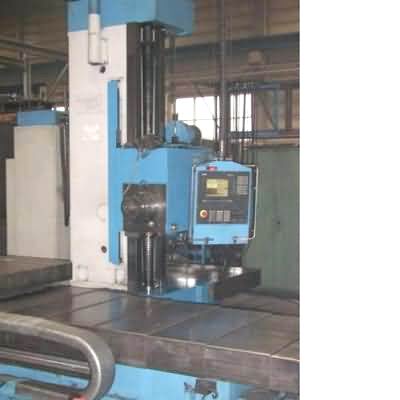

1 used CNC-boring mill - horizontal table type
brand WOTAN
model RAPID 1
built in 1979 - 1999 complete retrofit and in excellent condition
travel X-axis 2.000 mm
Y-axis 1.250 mm
Z-axis 1.000 mm
tabel surface clamping 1.600 x 1.250 mm
max. weight of workpiece bis 6.000 kg
spindle diameter 105 mm
spindle motor power 16 kW
spindle speed range up to 2.000 rpm
tool taper ISO 50
space required approx. 5,60 m x 3,70 m
machine weight totoal approx. 16.000 kg
CNC-control Siemens 810 - NEW installed in 1999 |
|
|
