Machining Center Vertical |
Giddings & Lewis
36 VTC Live Spindle数控镗床 |
|
|
|
|
|
|
|
|
|
|
PRODUCT DETAIL |
机床介绍 |
|
|
|
Maker:
Giddings & Lewis |
品牌：
Giddings & Lewis |
Model:
36 VTC Live Spindle
|
型号：
36 VTC Live Spindle
|
| M.O.Y:
1990 |
产年：
1990 |
| Axis Travel:
|
主轴行程：
|
| Spindle Speed:
15-2200 |
主轴转速：
15-2200 |
| Control:
G&L 8000-B CNC Control |
控制系统：
G&L 8000-B CNC Control |

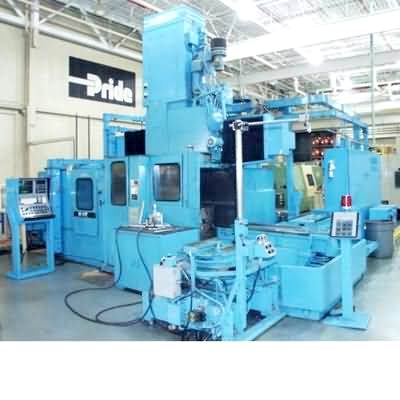

965mm / 1350mm Giddings & Lewis CNC Live Spindle
Vertical Boring Mill with Pallet Changer
S/N: 511-142-90
*will accept a vertical riser
Specifications:
Chuck (Universal 4-Jaw) Diameter: 965mm
Maximum Swing: 1350mm
Height Under Rail: 760mm
Ram Stroke with #60 taper: 965mm
Tool Changer Pockets: 30
Main Drive 3/60/460V: 50HP
Table Speeds (2 gear ranges): 5 - 600 RPM
Feed rates (rapid @ 7620mm/m): 2.5 – 6350mm/m
Live Spindle Speed Range: 15-2200 RPM
Live Spindle Motor: 25 HP
Table Index (C-Axis, 360,000 pos.): .001 deg.
Equipped with:
(2) 965mm 4-Jaw Universal Chuck
w/ Pallet Changer
G&L 8000-B CNC Control
Inductosyn Scales
Hardened & Ground Replaceable Ways
30 Tool Automatic Toolchanger
Helical Interpolation
Circular Interpolation
Chip Conveyor
Programmable Flood Coolant thru-the-spindle |
|
|
