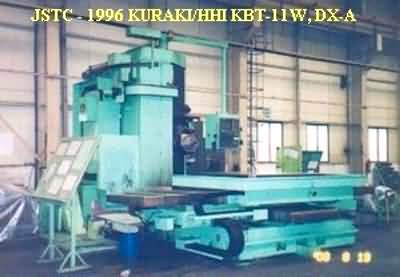

Brand : KURAKI / HHI (Japan)
New In 1996
Condition : Excellent
Model : KBT-11W, DX-A
Control : KURAKI / Fanuc 15M
Boring Spindle Diameter : 4.33” (110 mm)
Axis Travel(X/Y/Z/W) : 79 x 59 x 53 x 25.6” (2000 x 1500 x 1350 x 650 mm)
Distance from Table Top to spindle Center : 0 ~ 59” (0 ~ 1500 mm)
Distance from Table Center to Spindle nose : 25.6 ~ 79” (650~2000 mm)
Table Work Space 55 x 63” (1400 x 1600 mm)
Table Max Loading Capacity 19400 lbs. (8800 kg)
Table Auto, Indexing 0.001 degrees
Spindle Speed 5~2500/ min-1
Table (Pallet) Revolution Speed 1.3/ min-1
Spindle Taper Hole 7/24 Taper No.50 (ISO)
Rapid Traverse (XYZ) : 472 IPM (12000 mm/min)
Rapid Traverse (W) : 236 IPM (6000 mm/min)
Tool shank Type MAS BT50
ATC : 40 ea
Spindle Motor AC 15 /11
Machine Height 157” (4000 mm)
Floor Space 333 x 232” (8470 x 5900 mm)
Machine Weight 81500 lbs. (37000 kg)
|
