Technical data:

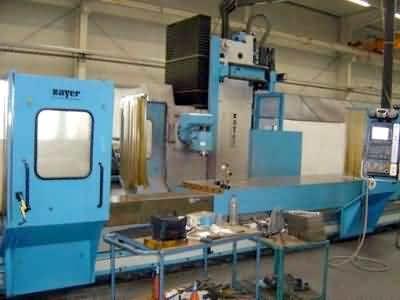

1 used CNC-milling machine
brand ZAYER
model 30 KFU 5000
built in 2002
Control CNC Siemens 840 D
Technical details
working area X-travel 4700 mm (length)
Y-travel 1500 mm (cross) increased
Z-travel 1500 mm (vertical)
table clamping surface 5000 x 1000 mm
table load 10 t
distance table - lower edge spindle 0 - 1434 mm vertical position
tool taper DIN 69871 A 50
spindle motor power 37 kW
spindle speed range 35 - 3000 rpm
feed 6 - 5000 mm/min
rapid traverse 15 m/min
weight of tools max. 25 kg
tool changing time 10 sec
total connected load 50 kW
weight of the machine approx. 36 metr. tons
dimensions of the machine ca. 7.90 x 6.10 x 4.65 m
|
