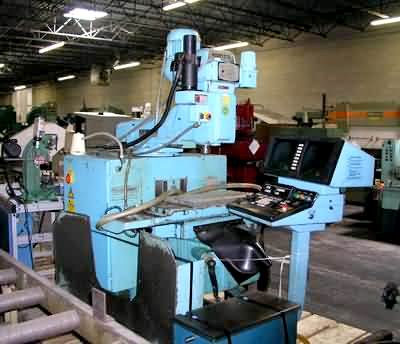

Overall Table Size: 14" x 49" with (3) T-Slots
Table Working Surface: 14" x 38"
Travels: 24" X, 14" Y, 5" Z (Quill), 16" Vertical Knee
Variable Powered Spindle Speed Change: 60 to 4000 RPM
Manual Hi-Low Speed Range Gear Change
Turret Type Machine with Adjustable Ram
14" Ram Adjust
3-Axis CNC Control Table, Saddle & Quill
Manual Vertical Knee Crank with Crank Handle
Ultimax Dual Screen Control
Machine Base Splash Pan
Automatic Way Lubrication System
Compressed Air Required
(2) Communication Ports & (2) 3-1/2" Floppy Disk Drivers
Electro-Craft Servo Drives
|
