Technical data:

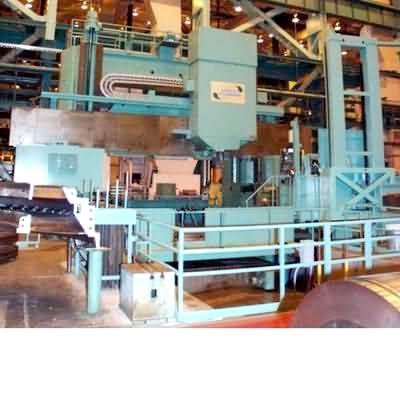

LS VTC w/ Off-center Milling
Table Diameter (w/ 4 top jaws): 4000 mm
Max. Swing: 4400 mm
Max. Height Under Rail: 4000 mm
Table Weight Capacity: 100,000 Kg
Table Speeds (2 gear ranges): .4 – 80 RPM
Table Drive: 140 Kw
Milling Work Area (Vertical Range): 1405 mm – 4404 mm
Travel of Table (Y-Axis – 5000 mm): +/- 2500 mm
Live Spindle Speeds (2 gear ranges) 10 – 2000 RPM
Live Spindle Motor: 63 Kw
Siemens 880 CNC Control
4 Position Automatic Head Changer (w/ heads)
|
