富士电机UPS专用600V IGBT单管
| 型号 |
封装
| VCES
Volts
| IC
TC=25°C
cont.
Amps.
| IC
TC=100°C
cont.
Amps.
| PC
@
Watts
| VCEsat
IC
Tj=25°C
Max.(V)
|
|
1MBK30D-060S |

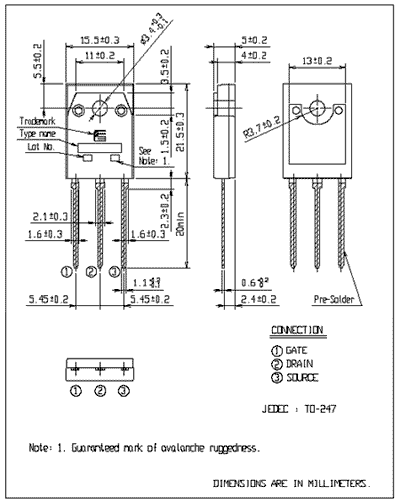

TO247 |
600 |
50 |
30 |
150 |
2.9 |
|
1MBK50D-060S |
TO247 |
600 |
75 |
50 |
230 |
2.9 |
|
1MBH50D-060S |

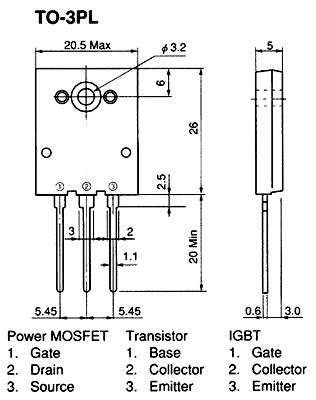

TO-3PL |
600 |
65 |
50 |
200 |
2.9 |
|
1MBH75D-060S |
TO-3PL |
600 |
83 |
75 |
310 |
2.9 |
富士电机IGBT单管
| 型号 |
封装
| VCES
Volts
| IC
TC=25°C
cont.
Amps.
| PC
@
Watts
| VCEsat
IC
Tj=25°C
Max.(V)
|
|
1MBH60-100 |
TO-3PL |
1,000 |
60 |
260 |
3.2 |
|
1MBH60D-100* |
TO-3PL |
1,000 |
60 |
260 |
3.2 |
富士电机增强型IGBT单管
| 型号 |
封装
| VCES
Volts
| IC
TC=25°C
cont.
Amps.
| IC
TC=100°C
cont.
Amps.
| PC
@
Watts
| VCEsat
IC
Tj=25°C
Max.(V)
|
|
1MBH50-060 |
TO-3PL |
600 |
82 |
50 |
310 |
3.0 |
|
1MBH50D-060* |
TO-3PL |
600 |
82 |
50 |
310 |
3.0 |
|
1MBH15-120 |
TO-3PL |
1,200 |
26 |
15 |
245 |
3.5 |
|
1MBH15D-120* |
TO-3PL |
1,200 |
26 |
15 |
245 |
3.5 |
|
1MBH25-120 |
TO-3PL |
1,200 |
38 |
25 |
310 |
3.5 |
|
1MBH25D-120* |
TO-3PL |
1,200 |
38 |
25 |
310 |
3.5 |
*注：型号中“D”表示带反向二极管。
增强型中的反向二极管的额定电流与IGBT标称一致，安全区为矩形。
|
 |
|
